6U CompactPCI 9th Gen Intel Xeon®/Core™ Processor Blade with two PMC/XMC sites
14nm multi-core 9th Gen Intel® Core™ processor
Dual channel DDR4 ECC memory, soldered and SO-CDIMM, up to 64GB
Versatile storage: SSD, CFast, M.2 2242 NVMe
Dual PMC/XMC sites
Remote management and TPM support

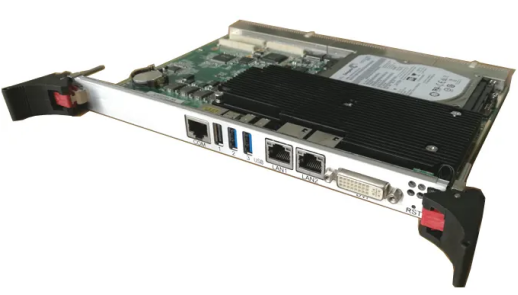

The UST-BK-191 is a 6U CompactPCI® processor blade with soldered DDR4-2666 ECC memory up to 32GB and DDR4-2666 ECC socket type memory up to 32GB.

Front panel I/O for the UST-BK-191 includes 1x DP, 2x GbE, 2x USB 3.1 ports, 1x RJ-45 COM port, 1x VGA and 1x PCM/XMC slot. The cPCI-6540V front panel includes 1x DP, 2x GbE, 1x USB 3.1 port and 2x PMC/XMC slots.

Graphics support is integrated on the CPU.

For expansion,UST-BK-191 supporting PCI 64-bit/33,66,133MHz PMC site or one PCIe x8 Gen 2 XMC site.

Rear I/O signals to RTM include 2x GbE by Intel® Ethernet Controller I210, 1x DVI-I, 1x eDP, 1x PCIe x4 (configurable to 4x PCIe x1), 3x SATA 3.0, 6x USB 2.0, 1x USB 3.1, 16x GPIO, high definition audio, KB/MS, and 2x serial ports (one supports Tx/Rx only).

The UST-BK-191 offers outstanding performance provided by Intel® Xeon® E, 9th Gen Intel® Core™ processor family, and is an ideal solution for military, aerospace, transportation and other industrial applications that require best value per watt computing power. The UST-BK-191 provides higher flexibility, supporting operation in peripheral slots with CompactPCI bus communication (Universal mode) and as a standalone computer if there is no CPU blade in the host slot. Internet remote manageability includes IPMI for system health monitoring over Internet and a GbE port on the faceplate supports Intel® AMT 9.0 for remote monitoring.
