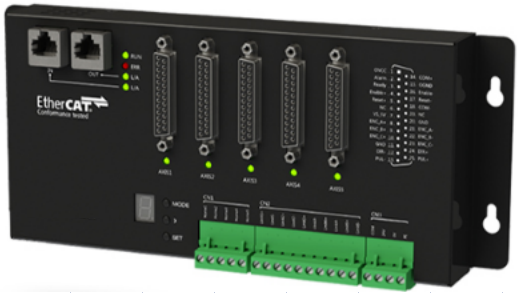

Ust-MK-SA150 is a distributed controller product conforming to EtherCAT specification, which supports flexible DC clock selection and driver type configuration; The product has passed strict electromagnetic compatibility and environmental tests, with high reliability and stability; The UST-MK-SA150 is internally equipped with arm cortex-a8 processing and FPGA logic unit, which can easily complete various primary and advanced motion control functions, with high-precision control capability and excellent synchronous control performance.



UST-MK-SA150 is a five axis stepping / servo control module based on EtherCAT protocol developed by our company according to independent innovation technology. The product has obtained ETG conformance test certification and international CE certification, which indicates that the product meets the strict requirements of international standard testing and reaches the level of international first-line products.



The product has the following features:

1. Step / servo control function with five general pulse signals;

2. Provide pulse / direction output and encoder feedback;

3. Built in motion function (point motion, zeroing, probe capture, etc.);

4. The product can be perfectly compatible with TwinCAT, CoDeSys and other EtherCAT master stations;

At the same time, it solves the problems of difficult selection and supply of EtherCAT stepping / servo for customers, and provides convenience for customers’ agile product development.



Application cases

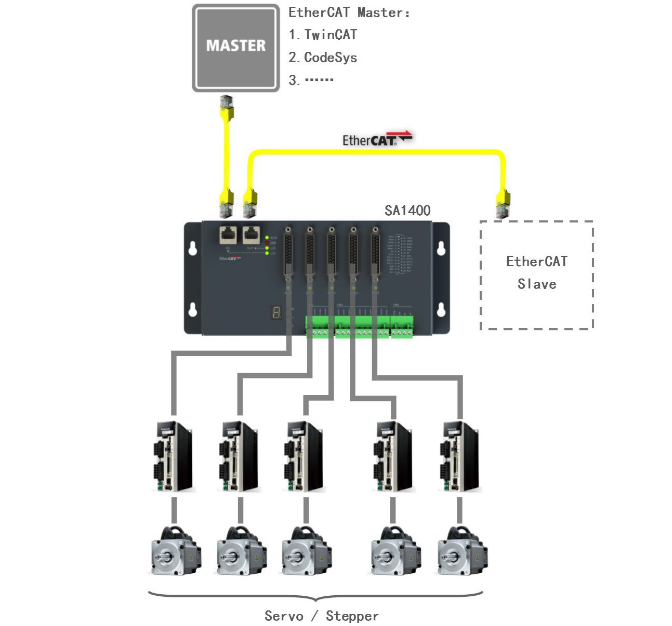

The UST-MK-SA150 control module consists of five driver interfaces, and each interface can be connected to a stepping or servo driver.

Typical system application cases are as follows:
