This 19" luggage cabinet consists of the 5GC, Application Server and BBU, and works as a 5G base station when connects with the RRU
A luggage is a set of 5G small cell. Through systems integration, it brings ultra-low latency and high-speed communication experiences to users when works with 5G terminal devices like CPE and cameras
The highly compact integrated 5G small cell set combining ADLINK’s latest edge server series and Sageran’s BBU protocol stack delivering complete 5G network functions

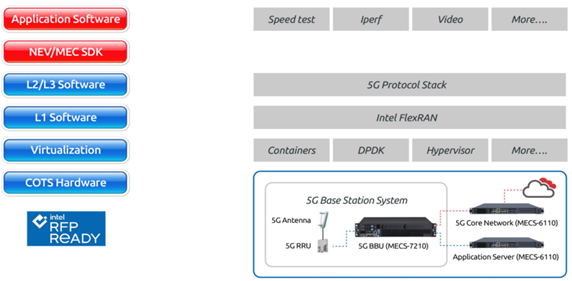

This demo kit includes core network, application server and BBU, which are integrated into one 19” suitcase and link to RRU. It also provides some devices like 5G CPE, 5G IP camera to demonstrate the various applications with high performance
An portable and out-of-box demo kit for SIs to quickly set the PoC scenarios
 5G BBU: MECS-7211 Edge Computing Platform with Intel® Xeon® Scalable Silver/Gold Processors
5G Core Network: MECS-6110 Edge Computing Platform with Intel® Xeon® D Processors
Application server: MECS-6110 Edge Computing Platform with Intel® Xeon® D Processors
EU: Expansion Unit that help to extend the connection distance of RRU and BBU
FEC Acceleration Card: PCIe-A100
5G RRU: Support 4T4R, Rated Power with rated power of 4x250mW
